| Specification | Details |

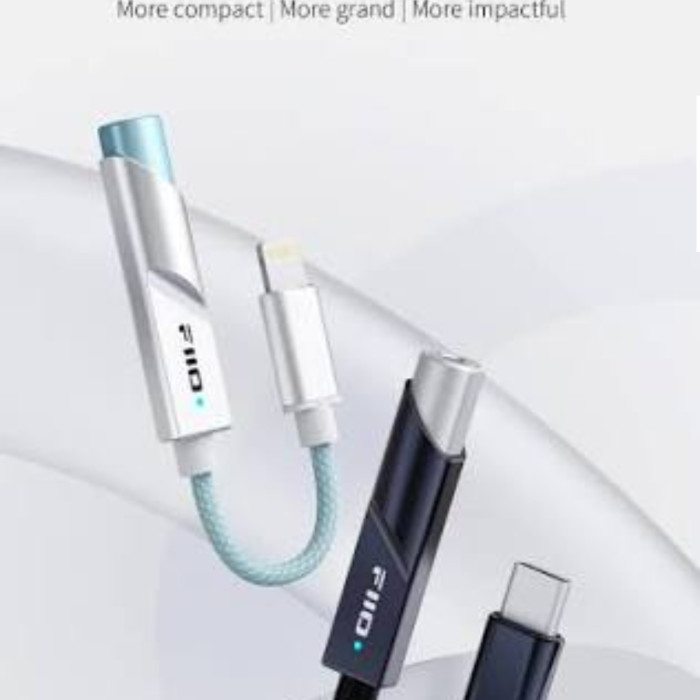

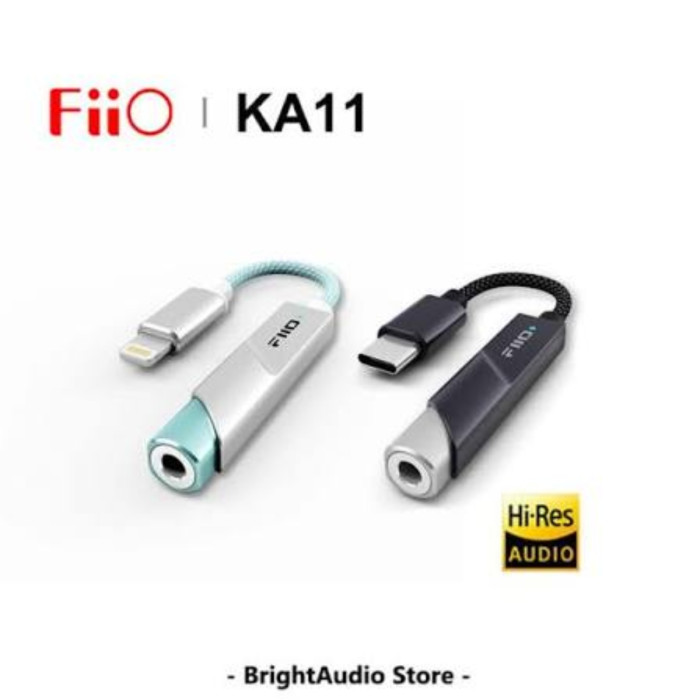

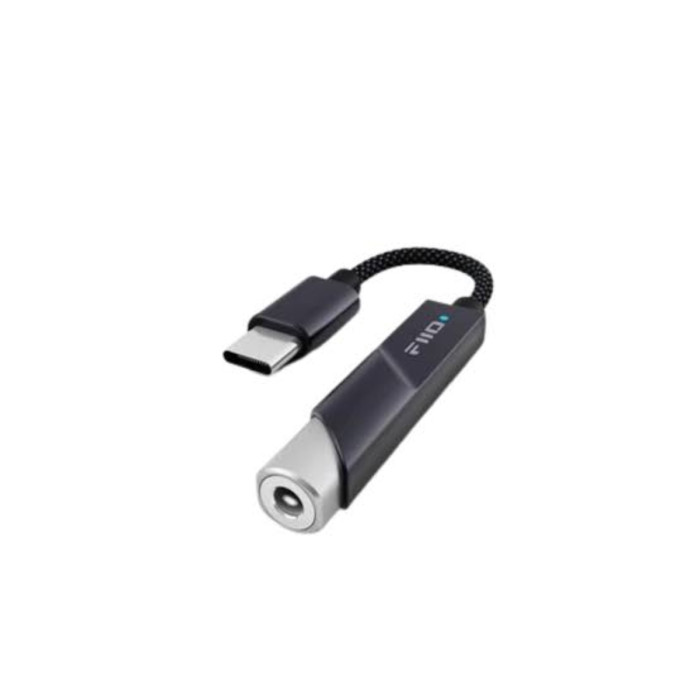

| Model | FiiO / JadeAudio KA11 |
| Product Type | Compact USB DAC & Headphone Amplifier |
| DAC Chipset | Cirrus Logic CS43131 |
| Op-Amp | SGM8262 |
| Input Interface | USB Type-C or Lightning (Version Dependent) |
| Output Interface | 3.5mm Single-Ended Headphone Output |
| Decoding Formats |
PCM: Up to 384kHz / 32-bit DSD: Native DSD256 |
| Output Power |
L+R ≥ 245mW + 245mW (16Ω, THD+N < 1%) L+R ≥ 200mW + 200mW (32Ω, THD+N < 1%) L+R ≥ 22mW + 22mW (300Ω, THD+N < 1%) |
| Signal-to-Noise Ratio (SNR) | ≥ 125dB (32Ω, A-weighted) |
| THD+N |
< 0.0006% (32Ω) < 0.00038% (300Ω) |
| Noise Floor | < 1.7μV (32Ω, A-weighted) |
| Output Impedance | < 0.7Ω (32Ω) |
| USB Audio Class Mode | UAC 2.0 & UAC 1.0 (Supports PS5, Nintendo Switch) |
| App Support | FiiO Control App (Android) |
| Cable Material | High-Purity Oxygen-Free Palladium-Plated Copper |
| Dimensions | Approx. 44.5 x 9.7 x 10.5 mm |
| Cable Length | Approx. 65.5 mm |
| Weight | Approx. 8.5g |
